Boats Ships Vessels Pneumatic Rubber Fender For STS

Qingdao Henger Shipping Supply Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Boats Ships Vessels Pneumatic Rubber Fender For STS

Brand Name : Henger

Model Number : Can Be Customized According to Customer Needs ,Minimum diameter 500mm

Certification : International Quality Management System ISO9001:2000 , Chinese Classification Society ( CCS ) , Det Norske Veritas ( DNV ) , British Lowe ( LR )

Place of Origin : China

MOQ : 1 PC

Price : 5000-10000 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Factory direct supply

Delivery Time : 7-15 working days

Packaging Details : nude packing or customized

Material : Natural Rubber

Color : Black

Protective Sleeve : tyre-chain net, rubber tube for option

Lifespan : 6-10 years

IP : 50KPa/80KPa (0.05MPa/0.08MPa)

Warranty : 12 months/24 months

Application : docking anti-collision

Diameter : 0.5-6m

Length : 1-10m

Key Word : Ribbed Pneumatic Fenders

Contact Now

Boats Ships Vessels Pnuematic Rubber Fender For STS

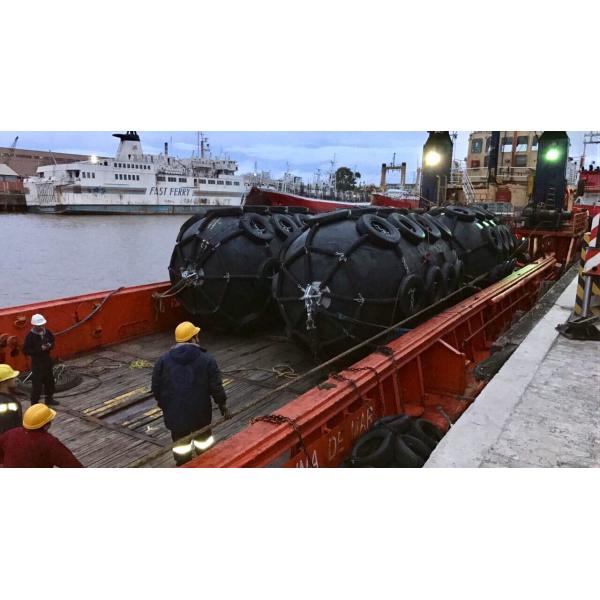

1. Project cases

Faced with soaring oil prices, the exploitation of oil and natural gas around the world has also flourished.

We have recently received many orders for pneumatic rubber fenders and STS hose from STS projects.
Are you also contacting or planning to contact this kind of project?

Boats Ships Vessels Pneumatic Rubber Fender For STS

Boats Ships Vessels Pneumatic Rubber Fender For STS

Boats Ships Vessels Pneumatic Rubber Fender For STS

2. Pneumatic rubber fender Parameter

Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154


The common size of pneumatic fender for this project are: 3.3*6.5m 4pcs + 1.2*2m 2pcs

We also look forward to receiving your enquiry. Or if you want to develop the market in this field, we will also use our expertise to provide you with free technical support, we can discuss together.

3. About the quality:

1. With ISO17357 DNV - GL inspection, CCS inspection (Rubber Material Testing, Product Size Testing, Air Tightness Testing, Pressure Testing)

2. The factory quality inspection report issued by Henger, and if the customer needs it, a video inspection certificate can be issued when the product quality inspection is performed before the product leaves the factory. On the premise that the buyer bears the cost, a third-party testing agency can be invited to conduct product testing.

4. About service:

1. In the future, I will be responsible for the business docking of your company, and I will serve the whole process by myself to reduce communication time.

2. I will add you in our company's VIP customer list, and we will deal with your business as the focus in the first time.
