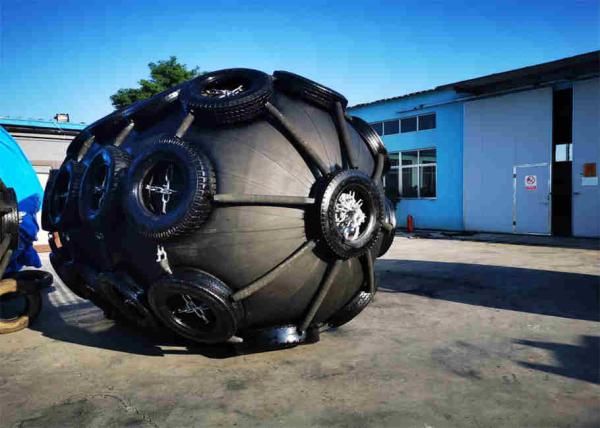

Marine Pneumatic Rubber Fender Floating Yokohama Type Strong And Durable

Brand Name : Henger

Model Number : HE-HPF

Certification : CCS, ABS, LRS, BV, GL, DNV, NK

Place of Origin : China

MOQ : 1PC

Price : $3600 PER PIECE

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 4 PCS PER WEEK

Delivery Time : 7-15 WORKING DAYS

Packaging Details : NUDE/PALLET

Material : Rubber

Size : D:0.5~4.5m L:1~9m

Aplication : Dock Ship Protecrion;STS Protection

Color : Customized

MOQ : 1 Piece

Warranty : 24 months

Service Life : 15-20 years

Packing : Pallet/Nude

Contact Now

Hot-Selling Marine Pneumatic Rubber Fender Floating Yokohama Type-Strong And Durable

ackaging & delivery
Packaging Details
Nude packing ,wooden pallet packing, wooden box packing
Port
Qingdao port
Lead time:
Quantity(pieces) 1 - 1 2 - 6 7 - 10 >10
Lead time (days) 1 7 10 To be negotiated

The "Yokohama Type Pneumatic Rubber Fender" was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.

Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.

Marine Pneumatic Rubber Fender Floating Yokohama Type Strong And Durable

Floating Marine Yokohama Type Pneumatic Rubber Fender Features

1. Guaranteed energy absorption

2. Chain tyre net and sling type

3. Thick skin construction

4. Good angular performance

5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).

6. No reduction on the performance of compression when inclined.

7. Suitable for areas with large or small tides.

8. Suitable in cold weather because the compressed air as buffering medium.

9. Especially in mooring of large scale ships in sea docks and lightering.

10. Maintains large clearances between hull and structure

Marine Pneumatic Rubber Fender Floating Yokohama Type Strong And Durable

Floating Marine Yokohama Type Pneumatic Rubber Fender Parameter

Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154

Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202

Floating Marine Yokohama Type Pneumatic Rubber Fender Application

1. large crude oil carrier, VLCC

2. container vessel

3. offshore sea task platform

4. large shipyard and dock

5. large ship and cruise ship

6. army harbor dock

7. large bridge pier

Marine Pneumatic Rubber Fender Floating Yokohama Type Strong And Durable

Floating Marine Yokohama Type Pneumatic Rubber Fender Storage

1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .

2 .The place where the fender is stored should be kept away from the heat source.

3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.

4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.

Marine Pneumatic Rubber Fender Floating Yokohama Type Strong And Durable

Floating Marine Yokohama Type Pneumatic Rubber Fender Transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
